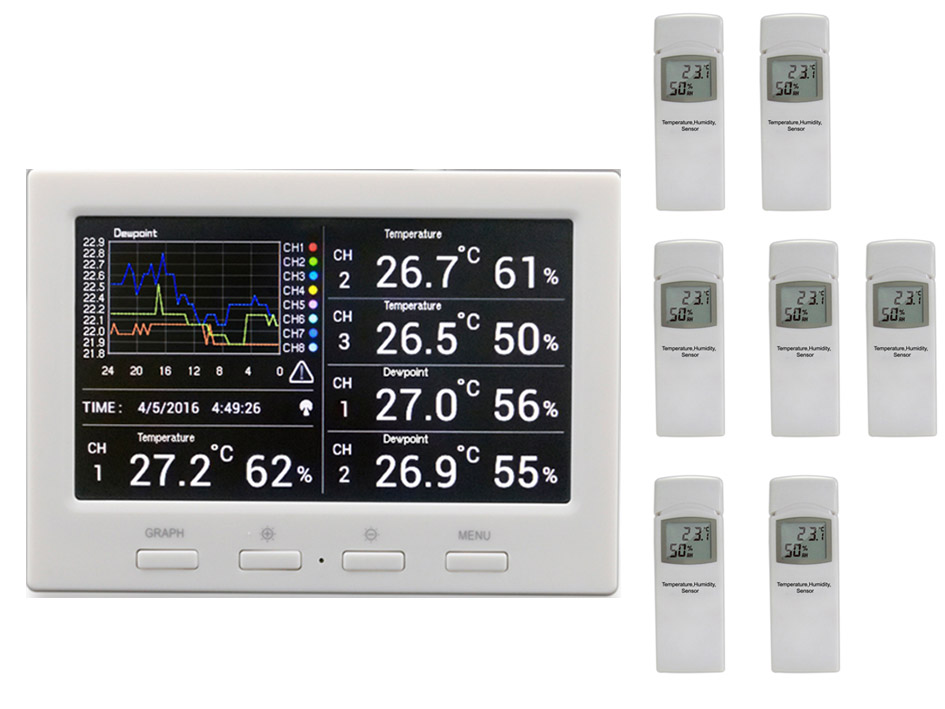

DL 5000 data logger thermometer incl. 7 thermo-hygrometer radio sensors
new Edition - now compatible with the froggit DP1500 Series
New from firmware V1.3.0: All channels can be labelled with predefined room names and shown in the normal display overview
Description:
The DL5000 weather data logger leaves nothing to be desired. In its price range, the DL5000 is the only weather data logger that can be connected to up to 8 thermo-hygrometer wireless sensors.
The DL 5000 has a high-quality full-color TFT display on which all relevant data is displayed. There is a detailed graph for temperature, dew point, heat index & relative humidity for all connected thermo-hygrometer wireless sensors.
In addition, you have an indication of the time and the date. You do not have to enter the time because it is a radio-controlled clock. You also have a display of the wireless sensors, which you can choose yourself. You can choose which channels are permanently displayed! And not only that: you can determine the temperature, heat index, dew point and the relative humidity freely.
For example: You would like to see the temperature of radio sensor 2 and the dew point of radio sensor 5 for channel area 2! No problem! The screen then alternately displays the temperature of wireless sensor 2 and the dew point of wireless sensor 5 every 3 seconds.
In addition, you can of course calibrate all sensors and enter max / min values for the temperature, the relative humidity, the dew point and the heat index and set an alarm for the temperature and the relative humidity.
In addition to all these functions, you can use an SD card. This is important, because with inserted SD-Card your data are secured against an unforeseeable power failure! And not that: you can export your data in csv format using the SD card.

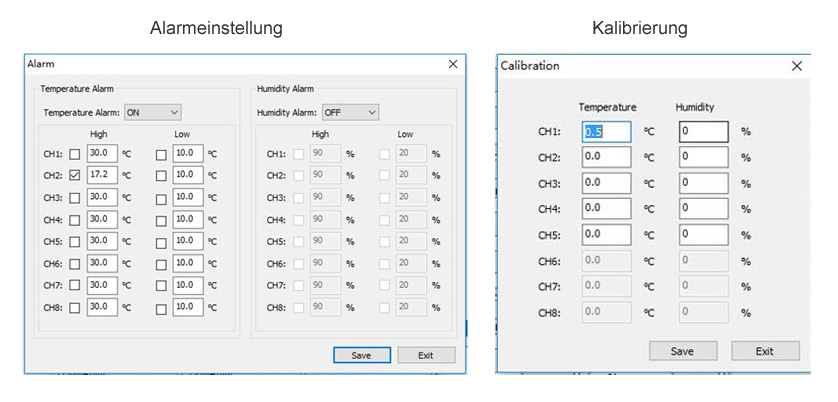

In addition to the SD card slot, the DL5000 has extensive PC software with numerous functions:
Live Data Display
Programming: Date / Time
Programming: Display Settings
alarm settings

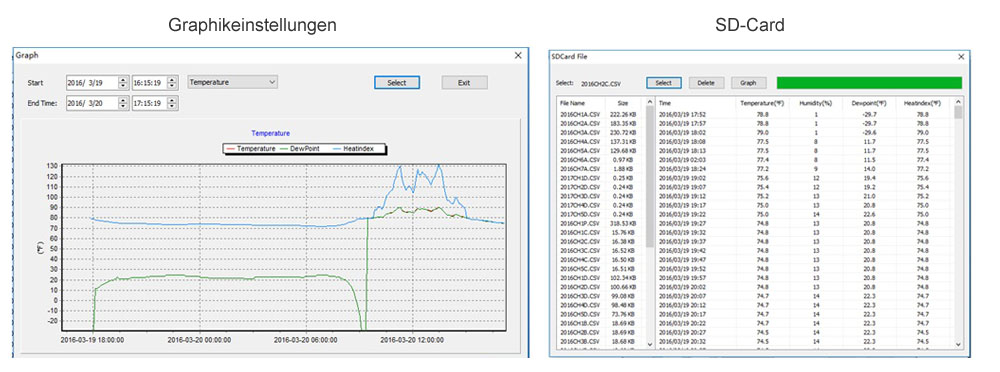

Export / graphics / data from the SD card
Synchronization of the date / time from the PC
All settings of the display unit are mirrored to the PC and can therefore be conveniently carried out on the PC.
Characteristics:
Full color TFT display

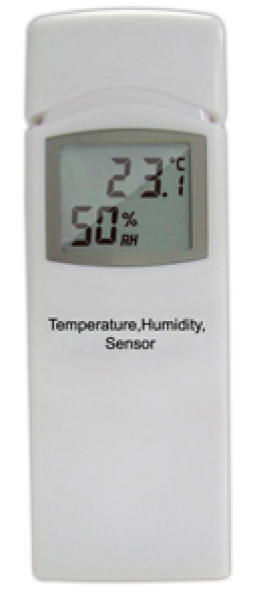

up to 8 thermo-hygrometer wireless sensors (battery operated: 2 x AA 1,5V each - not included)
Measurement of temperature, relative humidity, heat index, dew point
Radio Clock
SD card slot for evaluating the data (csv file), protection against power failure
Freely combinable display of the channels (personal assignment possible - see description)
Display of a clear graphic for all 8 wireless sensors (temperature, heat index, relative humidity, dew point)
Clear menu navigation
calibration function
Entry of max. & Min. Values (temperature, relative humidity, heat index, dew point)
Enter an alarm for temperature and relative humidity
Comprehensive PC evaluation, programming, configuration software (see below)
specifications:
Radio connection (in visual contact, barrier-free) up to 100 meter radio frequency: 868MHz
Temperature range: -40 ° C to 60 ° C
Resolution temperature: 0.1 ° C
Measuring range of rel. Humidity: 10% to 99%
Accuracy of rel. Humidity: +/- 5%
Alarm duration: 120 sec.
Waterproof: IPX3 (protection against spraying water at an angle of up to 60 °)
Energy consumption: display unit - AC power adapter (included), wireless sensor: 2 x AA alkaline batteries (not included)
Dimensions: Display unit (11.5B x 8.2H x 4T cm). Thermo-hygrometer wireless sensor (12B x 4H x1,8T cm)
Delivery:
DL5000 base station
7 x Thermo-Hygrometer wireless sensor
USB cable for PC connection
DC adapter (power supply)
User manual German / English
